MODOP – Cluster IPFS RAID1 – déploiement de deux peers via Parallèle-SSH – Partie 5

Aucun commentaire

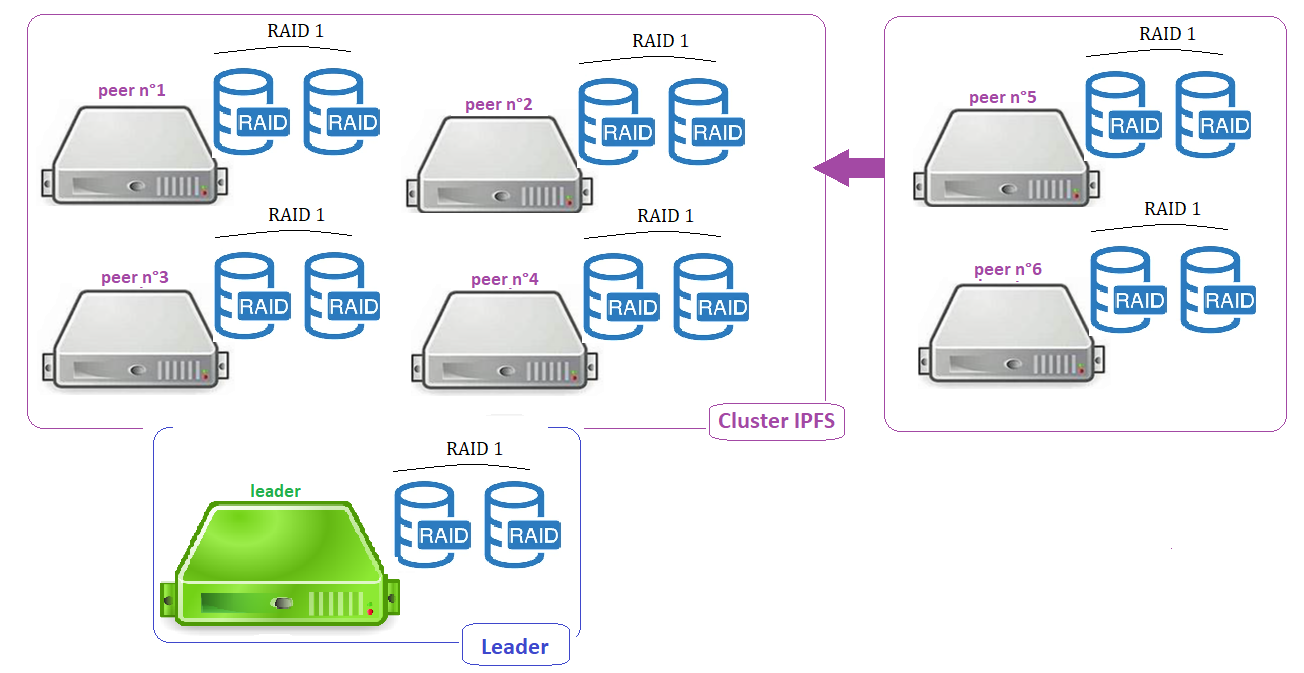

1. Inventaire des 2 nouveaux peers

Hostname

  • Node-ipfsp5 : IP = 192.168.1.75 (peer)
  • Node-ipfsp6 : IP = 192.168.1.76 (peer)

HDD

  • Disque SCSI0 : Système
  • Disque SCSI1 & SCSI2 : RAID1

2. Installation de Cluster-ssh

Installation du paquet parallèle SSH

[root@node-ipfsl ~]# dnf config-manager --set-enabled crb
[root@node-ipfsl ~]# dnf makecache

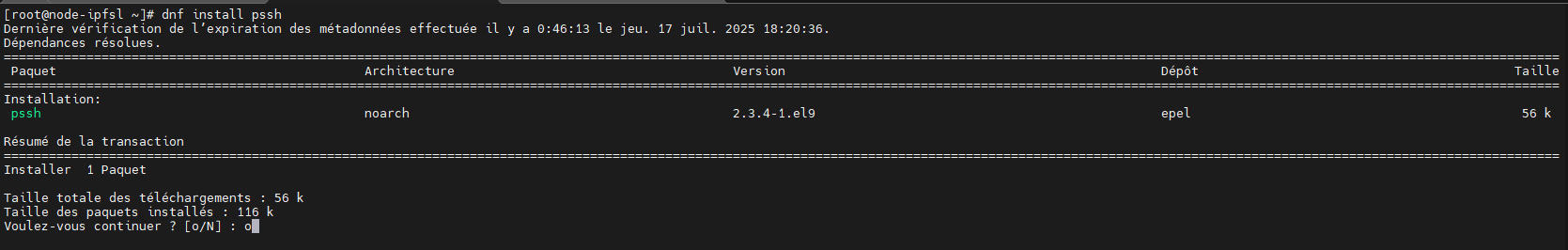

[root@node-ipfsl ~]# dnf install pssh

Configuration des hosts machines IPFS

[root@node-ipfsl ~]# echo "root@192.168.1.75" >> ~/.prod_ipfs.txt
[root@node-ipfsl ~]# echo "root@192.168.1.76" >> ~/.prod_ipfs.txt

[root@node-ipfsl ~]# echo "root@192.168.1.75" >> ~/.prod_ipfsp5.txt
[root@node-ipfsl ~]# echo "root@192.168.1.76" >> ~/.prod_ipfsp6.txt

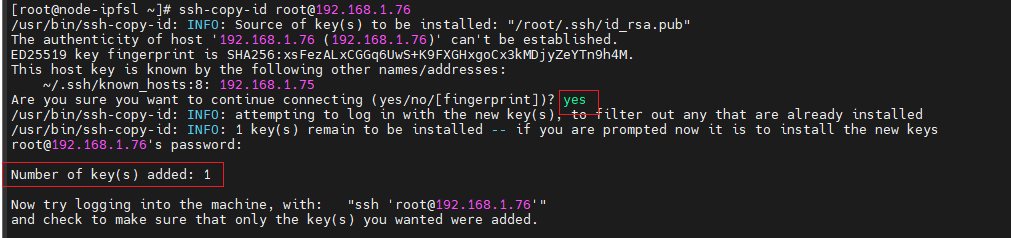

Echange de clef de connexion du leader sur les peers

[root@node-ipfsl ~]# ssh-keygen

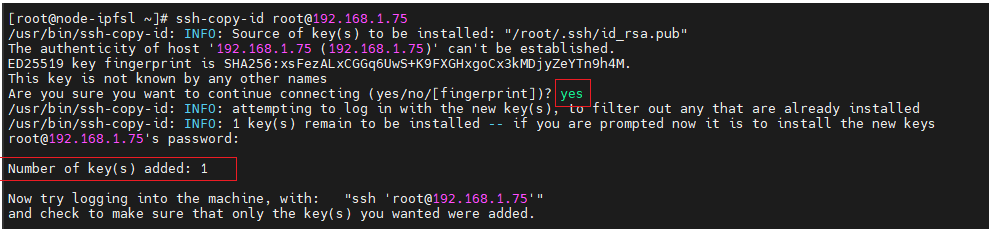

[root@node-ipfsl ~]# ssh-copy-id root@192.168.1.75

[root@node-ipfsl ~]# ssh-copy-id root@192.168.1.76

3. Installation des prérequis IPFS via pssh

Set le hotsname des machines

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfsp5.txt -i "hostnamectl hostname ipfsp5"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfsp6.txt -i "hostnamectl hostname ipfsp6"

Désactiver le SELinux

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "setenforce 0"

Set le NTP sur le fuseau de PARIS

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "timedatectl set-timezone Europe/Paris"

Mise à jour du système d’exploitation

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "yes | dnf -y update"

Ajout des dépendances pour IPFS

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "dnf install epel-release net-tools nmap wget tar git -y"

4. Installation du RAID1

Prédisposition du RAID Logiciel

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "dnf -y install mdadm"

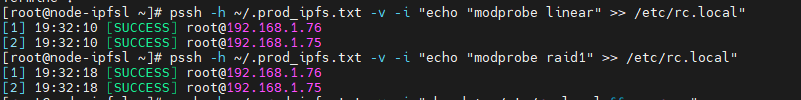

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "echo "modprobe raid1" >> /etc/rc.local"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "chmod +x /etc/rc.local && source /etc/rc.local"

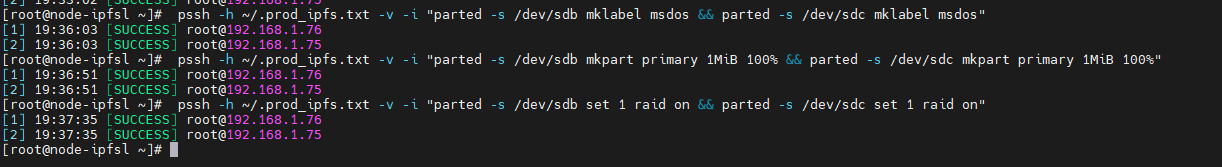

Partitionnement des disques en mode

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "parted -s /dev/sdb mklabel msdos && parted -s /dev/sdc mklabel msdos"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "parted -s /dev/sdb mkpart primary 1MiB 100% && parted -s /dev/sdc mkpart primary 1MiB 100%"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "parted -s /dev/sdb set 1 raid on && parted -s /dev/sdc set 1 raid on"

Création du RAID1

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "yes | mdadm --create /dev/md0 --level=1 --raid-devices=2 /dev/sdb1 /dev/sdc1"

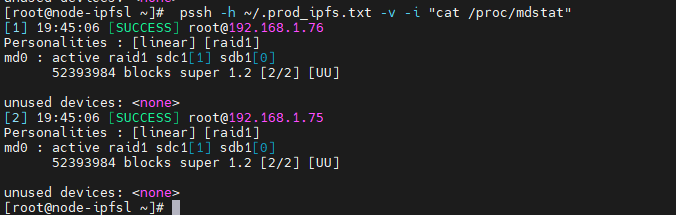

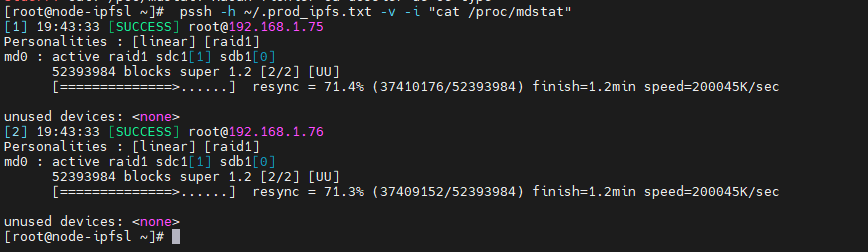

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "cat /proc/mdstat"

Préparation du volume RAID

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "yes|mkfs.ext4 /dev/md0 "

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "mkdir -p /mnt/ipfs-data"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "echo "/dev/md0 /mnt/ipfs-data ext4 defaults 0 2" >> /etc/fstab"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "systemctl daemon-reload"

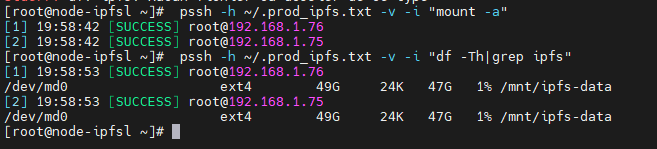

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "mount -a"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "df -Th|grep ipfs"

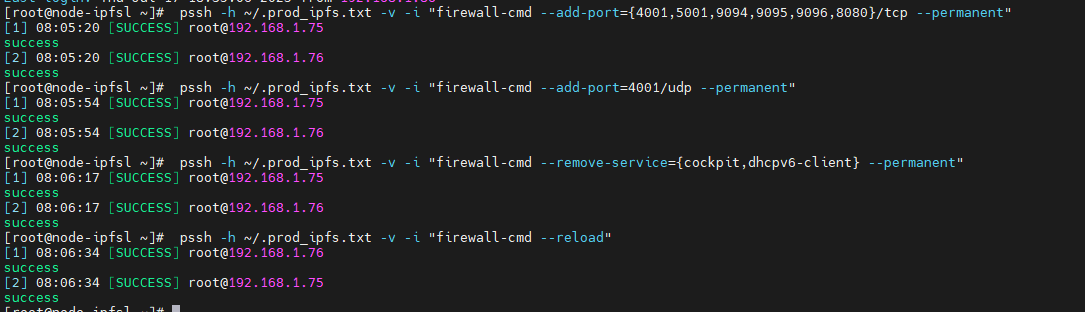

5. Installation des règles Firewall

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "firewall-cmd --add-port={4001,5001,9094,9095,9096,8080}/tcp --permanent"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "firewall-cmd --add-port=4001/udp --permanent"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "firewall-cmd --remove-service={cockpit,dhcpv6-client} --permanent"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "firewall-cmd --reload"

6. Installation des middleware IPFS et Cluster

Installation langage GO

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "cd /home && wget https://go.dev/dl/go1.24.4.linux-amd64.tar.gz"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "cd /home && tar -xvf go1.24.4.linux-amd64.tar.gz && mv go /usr/local"

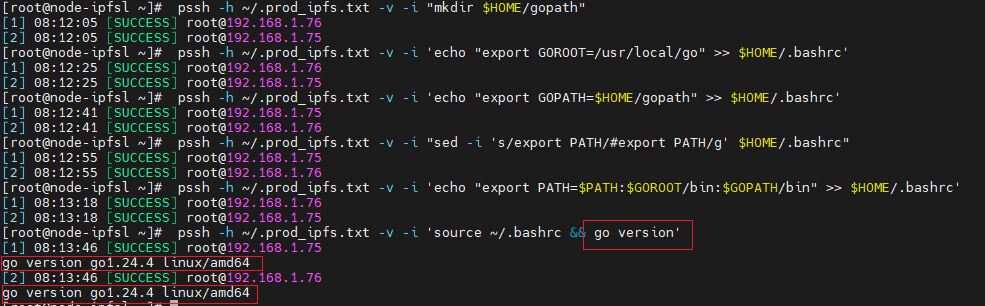

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "mkdir $HOME/gopath"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i 'echo "export GOROOT=/usr/local/go" >> $HOME/.bashrc'
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i 'echo "export GOPATH=$HOME/gopath" >> $HOME/.bashrc'
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "sed -i 's/export PATH/#export PATH/g' $HOME/.bashrc"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i 'echo "export PATH=$PATH:$GOROOT/bin:$GOPATH/bin" >> $HOME/.bashrc'
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i 'source ~/.bashrc && go version'

Installation Go-ipfs KUBO

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "cd /home && wget https://dist.ipfs.tech/kubo/v0.35.0/kubo_v0.35.0_linux-amd64.tar.gz"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "cd /home && tar -xzvf kubo_v0.35.0_linux-amd64.tar.gz kubo/"

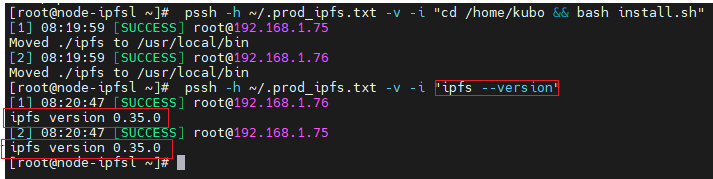

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "cd /home/kubo && bash install.sh"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -v -i "ipfs --version"

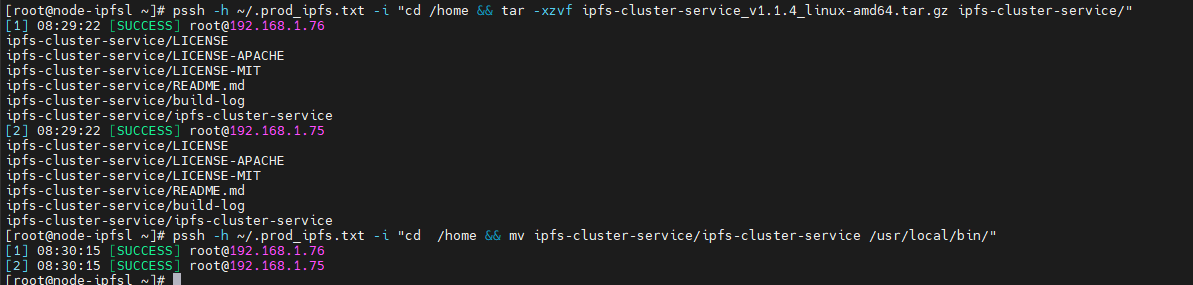

Installation IPFS Cluster service

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "cd /home && wget https://dist.ipfs.tech/ipfs-cluster-service/v1.1.4/ipfs-cluster-service_v1.1.4_linux-amd64.tar.gz"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "cd /home && tar -xzvf ipfs-cluster-service_v1.1.4_linux-amd64.tar.gz ipfs-cluster-service/"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "cd /home && mv ipfs-cluster-service/ipfs-cluster-service /usr/local/bin/"

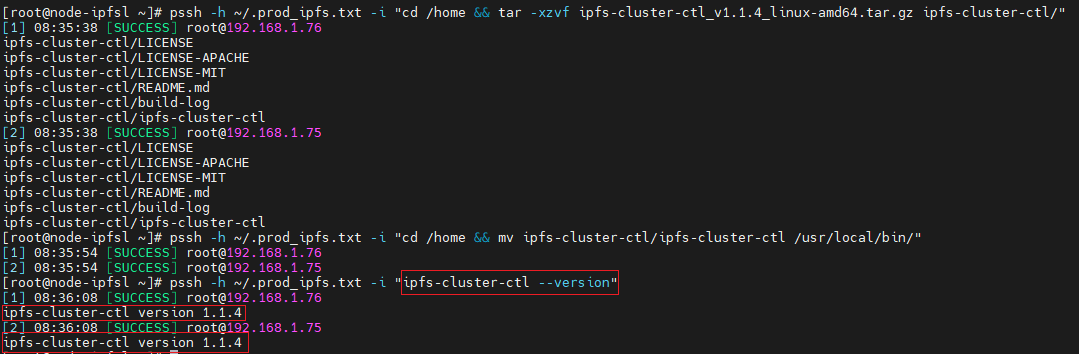

Installation IPFS Cluster ctl

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "cd /home && wget https://dist.ipfs.tech/ipfs-cluster-ctl/v1.1.4/ipfs-cluster-ctl_v1.1.4_linux-amd64.tar.gz"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "cd /home && mv ipfs-cluster-ctl/ipfs-cluster-ctl /usr/local/bin/"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "ipfs-cluster-ctl --version"

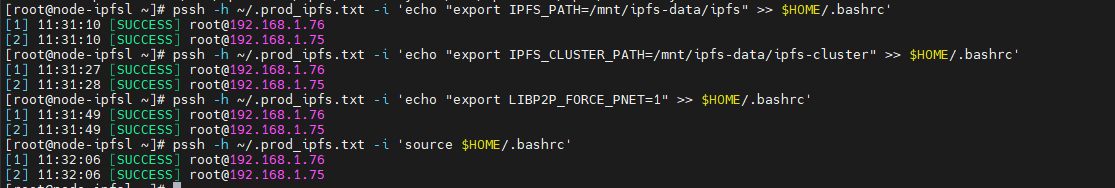

Installation des variables ENV ipfs

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i 'echo "export IPFS_PATH=/mnt/ipfs-data/ipfs" >> $HOME/.bashrc'
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i 'echo "export IPFS_CLUSTER_PATH=/mnt/ipfs-data/ipfs-cluster" >> $HOME/.bashrc'
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i 'echo "export LIBP2P_FORCE_PNET=1" >> $HOME/.bashrc'

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i 'source $HOME/.bashrc'

7. Initialisation et service IPFS Kubo

Initialisation du Peer

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "ipfs init"

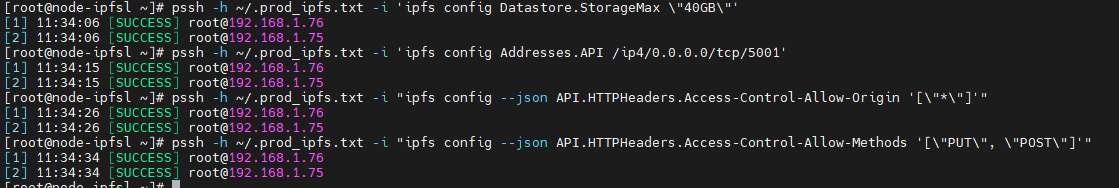

Paramétrage du peer

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i 'ipfs config Datastore.StorageMax \"40GB\"'
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i 'ipfs config Addresses.API /ip4/0.0.0.0/tcp/5001'
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "ipfs config --json API.HTTPHeaders.Access-Control-Allow-Origin '[\"*\"]'"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "ipfs config --json API.HTTPHeaders.Access-Control-Allow-Methods '[\"PUT\", \"POST\"]'"

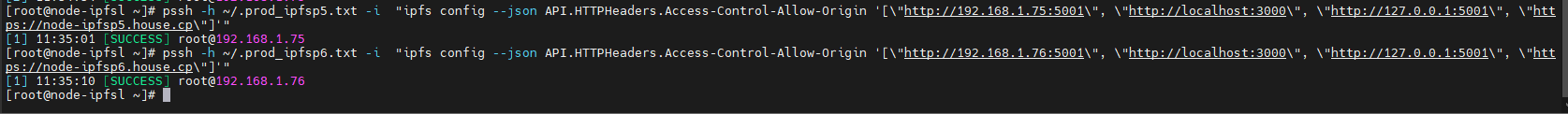

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfsp5.txt -i "ipfs config --json API.HTTPHeaders.Access-Control-Allow-Origin '[\"http://192.168.1.75:5001\", \"http://localhost:3000\", \"http://127.0.0.1:5001\", \"https://node-ipfsp5.house.cp\"]'"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfsp6.txt -i "ipfs config --json API.HTTPHeaders.Access-Control-Allow-Origin '[\"http://192.168.1.76:5001\", \"http://localhost:3000\", \"http://127.0.0.1:5001\", \"https://node-ipfsp6.house.cp\"]'"

Paramétrage mode Privé

[root@node-ipfsl ~]# for i in {5..6}; do scp /mnt/ipfs-data/ipfs/swarm.key root@192.168.1.7$i:/mnt/ipfs-data/ipfs/swarm.key ;done

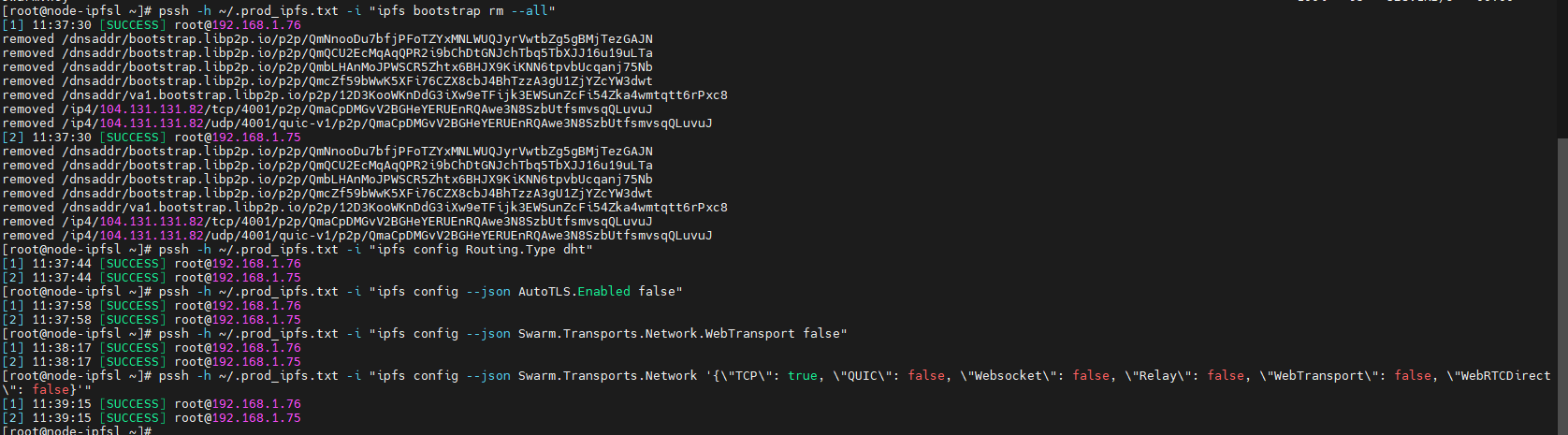

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "ipfs bootstrap rm --all"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "ipfs config Routing.Type dht"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "ipfs config --json AutoTLS.Enabled false"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "ipfs config --json Swarm.Transports.Network.WebTransport false"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "ipfs config --json Swarm.Transports.Network '{\"TCP\": true, \"QUIC\": false, \"Websocket\": false, \"Relay\": false, \"WebTransport\": false, \"WebRTCDirect\": false}'"

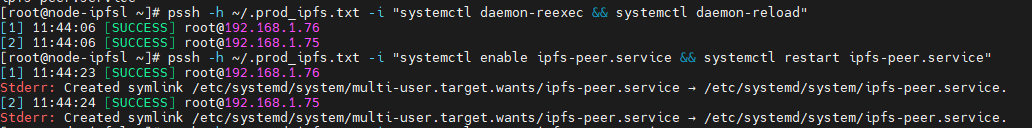

Service ipfs peer

[root@node-ipfsl ~]# for i in {5..6}; do scp /etc/systemd/system/ipfs-peer.service root@192.168.1.7$i:/etc/systemd/system/ipfs-peer.service ;done

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "systemctl daemon-reexec && systemctl daemon-reload"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "systemctl enable ipfs-peer.service && systemctl restart ipfs-peer.service"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "systemctl status ipfs-peer.service"

8. Initialisation et service IPFS Cluster

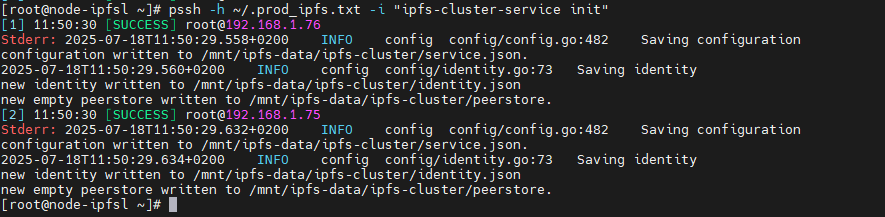

Initialisation du Cluster-service

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "ipfs-cluster-service init"

Ajout de la clef privée du cluster

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "sed -i 's/\"secret\": \".*\"/\"secret\": \"9dc28eb1c943ec508cc9f5a8b4c4726a5398be979c62521dd93252d62cb72196\"/' /mnt/ipfs-data/ipfs-cluster/service.json"

Service ipfs Cluster

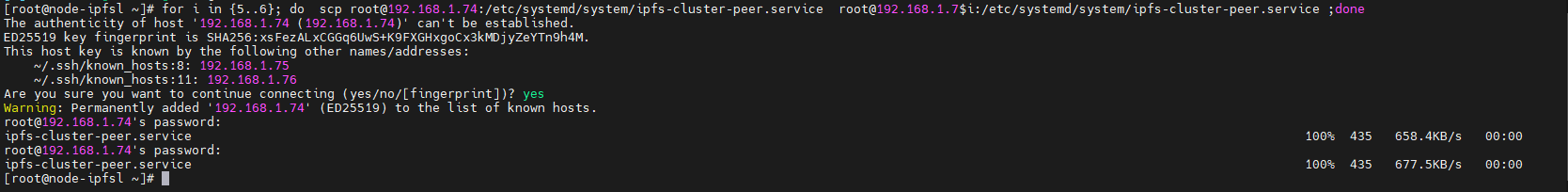

[root@node-ipfsl ~]# for i in {5..6}; do scp root@192.168.1.74:/etc/systemd/system/ipfs-cluster-peer.service root@192.168.1.7$i:/etc/systemd/system/ipfs-cluster-peer.service ;done

Ouverture des accès web API 9094

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "sed -i 's|"/ip4/127.0.0.1/tcp/9094"|"/ip4/0.0.0.0/tcp/9094"|' /mnt/ipfs-data/ipfs-cluster/service.json"

Ouverture des accès Web URL 8080

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "sed -i 's|"/ip4/127.0.0.1/tcp/8080"|"/ip4/0.0.0.0/tcp/8080"|' /mnt/ipfs-data/ipfs/config"

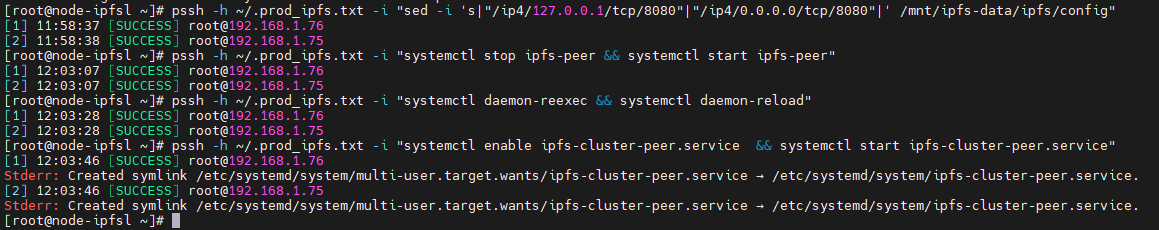

Démarrage de l’ensemble des service IPS et IPS Cluster

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "sed -i 's|"/ip4/127.0.0.1/tcp/8080"|"/ip4/0.0.0.0/tcp/8080"|' /mnt/ipfs-data/ipfs/config"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "systemctl stop ipfs-peer && systemctl start ipfs-peer"

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "systemctl daemon-reexec && systemctl daemon-reload"
[root@node-ipfsl ~]# pssh -h ~/.prod_ipfs.txt -i "systemctl enable ipfs-cluster-peer.service && systemctl start ipfs-cluster-peer.service"

9. Résultat du déploiement via parallèle SSH

Liste les nœuds du cluster IPFS

[root@node-ipfsl ~]# ipfs-cluster-ctl peers ls |grep "192.168.1.7"

Liste les nœuds connectés sur le peer n°5

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfsp5.txt -i "ipfs swarm peers"

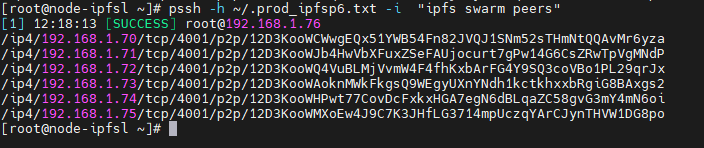

Liste les nœuds connectés sur le peer n°6

[root@node-ipfsl ~]# pssh -h ~/.prod_ipfsp6.txt -i "ipfs swarm peers"

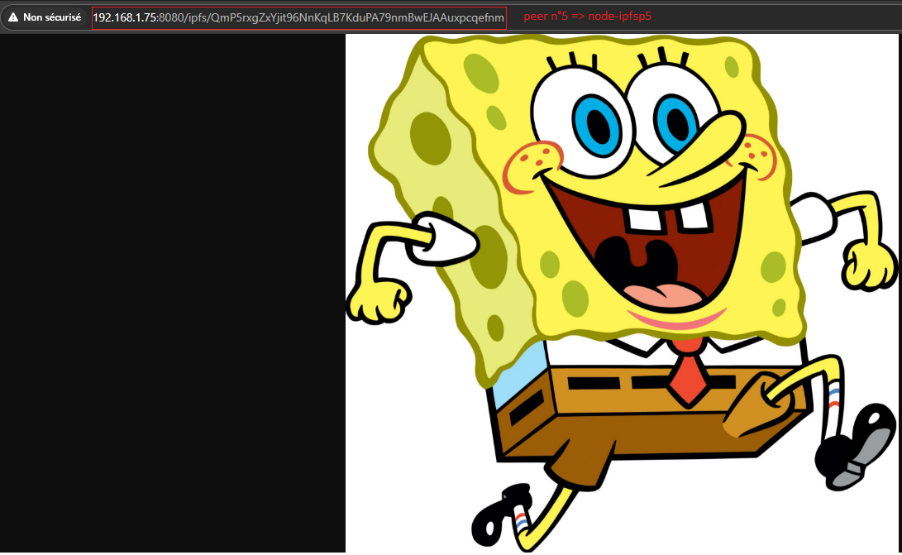

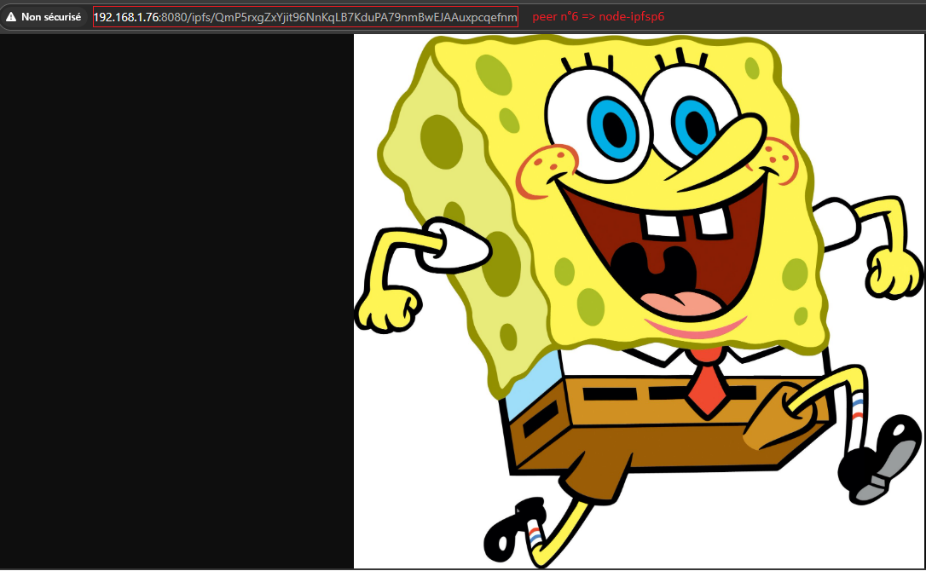

Accès du fichier «Bob_l_eponge.jpg » répliqué précédemment
